General Description

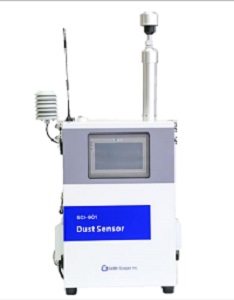

The SailBri Cooper SCI-901 sensor is an air quality monitoring device that provides real-time measurements of PM2.5 and PM10 mass concentrations and environmental parameters such as pressure, temperature and relative humidity; wind direction and wind speed measurements are optional. Data can be accessed via API, USB or online dashboard. The SailBri Cooper SCI-901 sensor features touch screen front panel; active heating technology and noise and video monitoring.
Principle of Operation
The SailBri Cooper SCI-901 sensors use the LP-2510T PM sensor from Suzhou Yuanhuida Ltd (China). These sensors utilize state-of-the-art light scattering sensor technology to calculate the PM2.5 and PM10 mass concentration in μg/m3.
Features
- Dimensions: 545 (L) x 255 (W) x 965 (H) mm
- Weight: 20 kg
- Power supply: Yes, 100-240V AC; 50/60 Hz frequency; 100W power consumption
- Battery: No
- Clock function: Yes
- Sampling mechanism: pump, 1±0.2 L/min
- Environmental operating conditions: -30-55 °C and 0-95% RH (non-condensing)
- Internal data logging: yes, SD card data storage
- Data communication: LTE 4G
- Data logging/retrieval: Data can be retrieved via API, USB or online dashboard
- Weatherproof: Yes
Applications
- Low-cost alternative for monitoring stations
- Smart cities
- Pollution source tracing
- Traffic pollution monitoring
- Industrial fence line monitoring
- Emergency monitoring
- Air quality model validation
- Community monitoring
- Pollution migration monitoring
